Double Y axis Swiss Type CNC Lathe W268

Home  >  W Series (26 / 32 / 42)  >  Double Y axis Swiss Type CNC Lathe W268

W268

Description


We always think about needs and conveniences from users, and then, we make more suitable and efficient machines, W series. The human-based and innovation are our important core design. The new experience by W series presented.



1.Rigidity structure design and powerful spindles bring more producing ability and machining performance.

2.Fast and heavy turning by powerful live tools. (see main structure list)

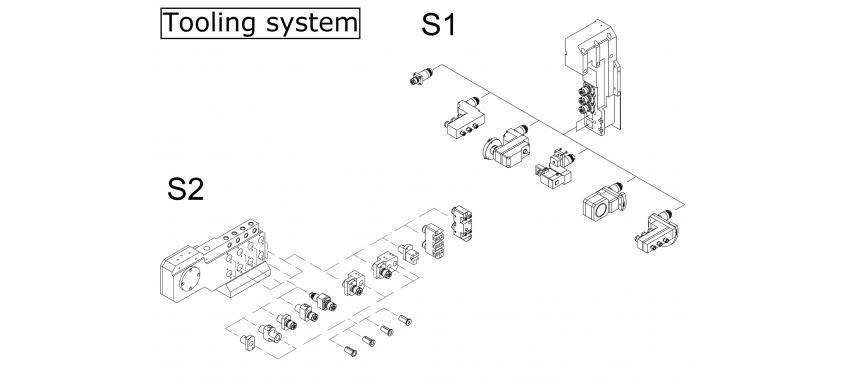

3.Special tooling holders for complicated jobs. (see optional accessories list)

4.Spindle chiller system makes stable temperature and good precision jobs. (see standard accessories list)

5.Hydraulic clamping spindles are easy adjustment. (see standard accessories list)















W268  New Double Y axis Swiss Turn Machine Catalog

Feature


Process Capacity:



Item

Unit

Max. Capacity

Remark

Main/ Sub spindle Max. drilling

mm

Ø10

SUS303

Main/ Sub spindle Max. tapping

mm

M10 / P1.5

SUS303

Cross live tool Max. drilling

mm

Ø10

SUS303

Cross live tool Max. tapping

mm

M8 / P1.25

SUS303

Sub spindle face live tool Max. drilling

mm

Ø10

SUS303

Sub spindle face live tool Max. tapping

mm

M6 / P1.0

SUS303

*Tested by FANUC system

Specification Table


Main structure:

Item

Unit

W268

Remark

Max. turning dia.

mm

Ø26



Max. turning length (Rotary)

mm

300

One stroke

Max. turning length (Fixed)

mm

230

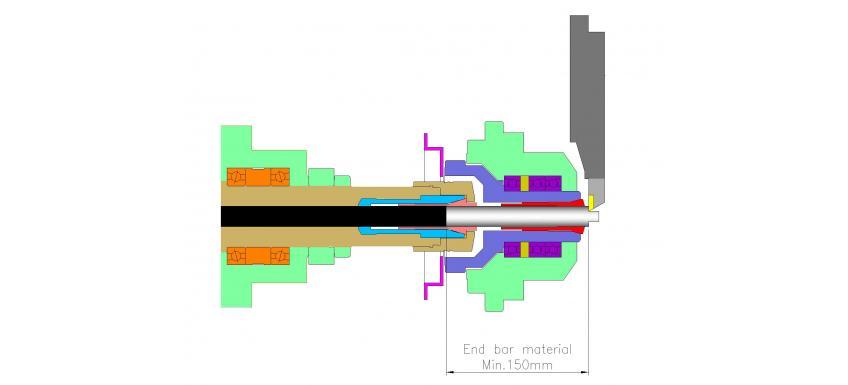

Max. turning length (Non guide bush)

mm

65



OD tooling holder

pcs

6

□16

ID tooling holder

pcs

5

Ø25

Cross live tooling holder

pcs

ER20x3 , ER16x2

5P

Face live tooling of sub spindle holder

pcs

8

ER-16

Sub spindle aside drilling tooling holder

pcs

2

Ø25

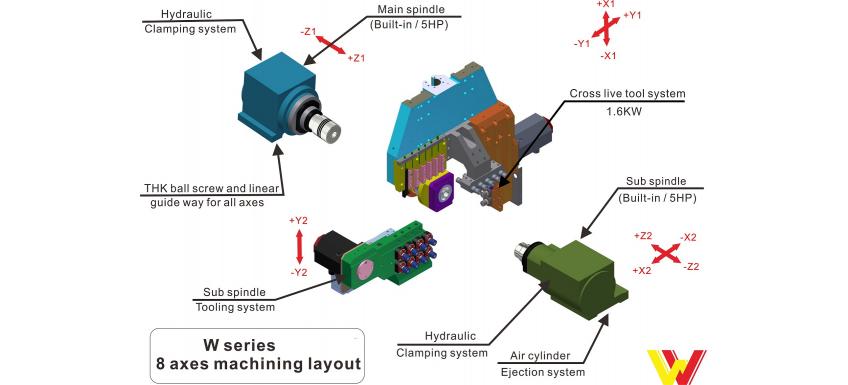

No. of axis controls (with C axis)

pcs

8



C axis control minimum

degree

0.001°



Max. main spindle speed

rpm

8000



Max. sub spindle speed

rpm

8000



Rapid traverse of X1/X2/Z1/Z2/Y1

M/min

30



Rapid traverse of Y2

M/min

20



Main spindle motor

KW

11

Built-in

Sub spindle motor

KW

11

Built-in

Main spindle cooling



Oil cooling



Sub spindle cooling



Oil cooling



Cross live tooling motor

KW

1.6 (6000rpm)



Face live tooling motor of sub spindle

KW

1.4 (6000rpm)



Lubrication tank

L

2



Air pressure

Mpa

0.6

1

Air flow

L/min.

20 ~ 145

 4

Machine dimension L x W x H

mm

2945 x 1665 x 2130

 2

Coolant tank

L

380L(100%)

3

Weight

KG

4450

2

1. 0.6Mpa = 6kg/c㎡.

2. Without coolant tank and pumps.

3. At least 90% full for machining

4. Air flow will be different by different options.

※ All specification are subject to change without notice.
