Single Y axis Swiss Turn CNC Machine W327 / 427

Home  >  W Series (26 / 32 / 42)  >  Single Y axis Swiss Turn CNC Machine W327 / 427

W327 / 427

Description


Wivie always think about needs and conveniences from users, and then, we make more suitable and efficient machines, W series. The human-based and innovation are our important core design. The new experience by W series presented.

W series and SW series CNC Swiss Turn Machine can process milling, tapping, drilling, and turning complexity parts for medial parts (especially for bone screw), electrical parts, automobile, clock/ watch, and aerospace..., etc.. Main and Sub spindle synchronous machining can save time cost.







swiss turn machine













W327 / 427 New Single Y axis Swiss Turn Machine Catalog



Feature


Process Capacity:



Item

Unit

Max. Capacity

Remark

Main/ Sub spindle Max. drilling

mm

Ø13

SUS303

Main/ Sub spindle Max. tapping

mm

M12 / P1.75

SUS303

Cross live tool Max. drilling

mm

Ø10

SUS303

Cross live tool Max. tapping

mm

M8 / P1.25

SUS303

Sub spindle face live tool Max. drilling

mm

Ø10

SUS303

Sub spindle face live tool Max. tapping

mm

M6 / P1.0

SUS303

*Tested by FANUC system

Specification Table


Main structure:

Item

Unit

W327

W427

Remark

Max. turning dia.

mm

Ø32

Ø42



Max. turning length (Rotary)

mm

300



Max. turning length (Fixed)

mm

340

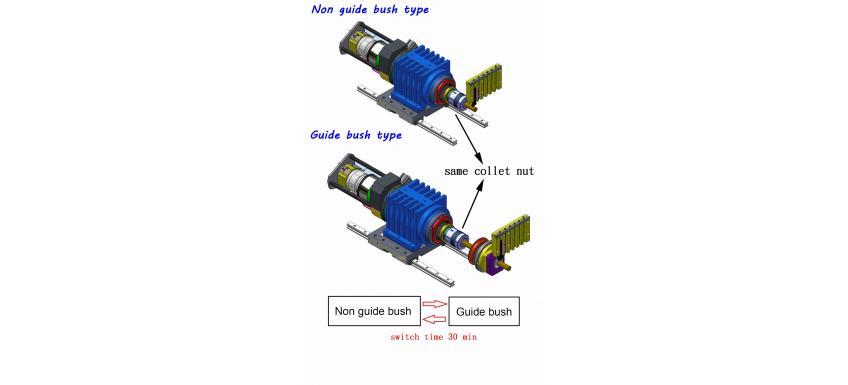

Max. turning length (Non guide bush)

mm

80

105



OD tooling holder

pcs

6

□16

ID tooling holder

pcs

5

Ø25

Cross live tooling holder

pcs

3

ER-20

Cross live tooling holder

pcs

2

ER-16

Face live tooling of sub spindle holder

pcs

4

4

ER-16

Sub spindle aside drilling tooling holder

pcs

2

Ø25

No. of axis controls (with C axis)

pcs

7

7



C axis control minimum

degree

0.001°



Max. main spindle speed

rpm

7000

6000



Max. sub spindle speed

rpm

7000

6000



Rapid traverse of X1/X2/Z1/Z2/Y1

M/min

30



Rapid traverse of Y2

M/min

20



Main spindle motor

KW

11

Built-in

Sub spindle motor

KW

11

Built-in

Main spindle cooling

pcs

Oil cooling



Sub spindle cooling

pcs

Oil cooling



Main spindle clamping system

pcs

Hydraulic



Sub spindle clamping system

pcs

Hydraulic



Cross live tooling motor

KW

1.6 / 6000rpm



Face live tooling motor of sub spindle

KW

1.4 / 6000rpm



Lubrication tank

L

2



Air compressed pressure

Mpa

0.6

1

Air compressed flow

L/min.

20 ~ 145

 4

Machine dimension L x W x H

mm

2945 x 1665 x 2130

 2

Coolant tank

L

380L(100%)

3

Weight

KG

4450

2

1. 0.6Mpa = 6kg/cm2

2. Without coolant tank and pumps.

3. At least 90% full for machining

4. Air flow will be different by different options.

All specification are subject to change without notice.
