Swiss turn machine - double Y with B axes

Home  >  i series (12 / 20 / 26)  >  Swiss turn machine - double Y with B axes

i129B / i209B / i269B

Description


Specification


Item

Unit

i129B

i209B

i269B

Remark

Control system



FANUC
32i B

FANUC
31i B5

FANUC
32i B

FANUC
31i B5

FANUC
32i B

FANUC
31i B5



Max. simultaneity axis per channel



4-axis

5-axis

4-axis

5-axis

4-axis

5-axis



Max. turning dia.

mm

Ø12

Ø20

Ø26

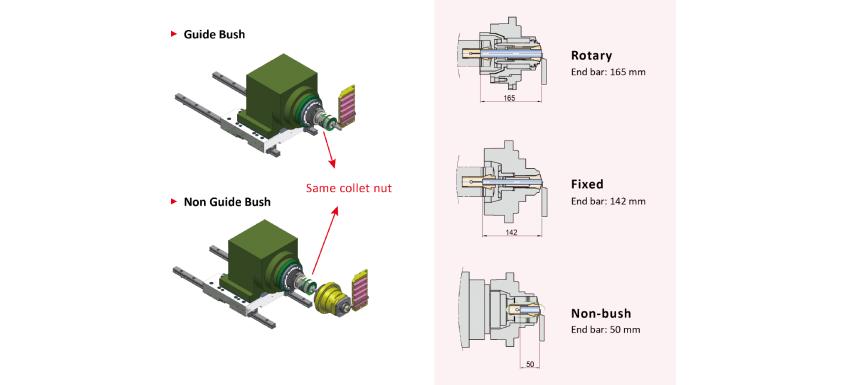

Max. turning length (Rotary)

mm

220

220

220

one stroke

Max. turning length (Fixed)

mm

240

240

240



Max. turning length
 (Non guide bush)

mm

30

50

65



OD tooling holder

pcs

 9/□10

9/□12

9/□12



ID tooling holder

pcs

4/Ø25

4/Ø25

4/Ø25

Main/Sub spindle

B axis tooling number (Front)

pcs

  4/ER-16

4/ER-16

4/ER-16

Main spindle

B axis tooling number (Rear)

pcs

 4/ER-11

4/ER-11

4/ER-11

Sub spindle

B axis rotating degress

degree

0°~135°

0°~135°

0°~135°



S2 face live tool

pcs

4/ER-16

4/ER-16

4/ER-16



S2 cross live tool

pcs

4/ER-16

4/ER-16

4/ER-16



S2 ID tool

pcs

4/Ø25

4/Ø25

4/Ø25



Sub spindle aside drilling tooling holder

pcs

1/Ø25

1/Ø25

1/Ø25



No. of axis controls (with C axis)

pcs

9

9

9



C axis control minimum

degree

0.001°

0.001°

0.001°

Main/Sub spindle

Max. main spindle speed

rpm

10000

10000

8000



Max. sub spindle speed

rpm

10000

8000

8000



Main spindle motor

KW

2.2/3.7

3.7/5.5

3.7/5.5

Built-in

Sub spindle motor

KW

2.2/3.7

3.7/5.5

3.7/5.5

Built-in

Main spindle cooling



Air cooling

Air cooling

Air cooling



Sub spindle cooling



Air cooling

Air cooling

Air cooling



Main spindle clamping system



Mechanical

Mechanical

Mechanical

OP.Hydraulic

Sub spindle clamping system



Mechanical

Mechanical

Mechanical

 OP.Hydraulic

Rapid traverse of X1/Z1/Y1/X2/Z2/Y2

M/min

30

30

30



B axis live tool

KW/rpm

1.0/6000

1.4/6000

1.4/6000



Sub spindle live tool

KW/rpm

1.0/8000

1.4/8000

1.4/8000



Lubrication tank

L

2

2

2



Air compressed pressure

Mpa

0.6

0.6

0.6

※ 1

Air compressed flow

L/min.

10

10

10



Coolant tank

L

290L (100%)

290L (100%)

290L (100%)

※ 2

Machine dimension L x W x H

mm

2880x1459x1900

2880x1459x1900

2880x1459x1900

 ※ 3

Weight

KG

2950

3200

3200

※ 4

※ 1. 0.6Mpa = 6kg/cm²  ※ 2. At least 90% full for machining  ※ 3. Without chip conveyor ※ 4. Without coolant tank and pumps.
